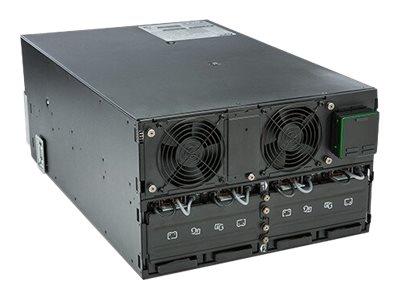

Name: APC Smart-UPS SRT 8000VA RM 230V
Price: 5002.17 GBP
Availability: InStock
Rating: 0.0 (0 reviews)

Description

LCD graphics display has text and mimic diagrams that display modes of operation, system parameters and alarms. Connect the device to a network using a 10 or 100 BASE-T connection. Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance. Automatic internal bypass supplies utility power to the connected loads in the event of a UPS power overload or fault. Scalable runtime allows additional run time to be quickly added as needed. Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.

10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

Specifications

Summary

Product Description: APC Smart-UPS SRT 8000VA RM - UPS - 8000 Watt - 8000 VA

Device Type: UPS - rack-mountable

Rack Size: 6U

Weight: 111.82 kg

Input Voltage: AC 230 V

Output Voltage: AC 230 V ± 3%

Power Capacity: 8000 Watt / 8000 VA

Input Connectors: Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)

Output connectors: 6 x power IEC 60320 C13 , 4 x power IEC 60320 C19 , 1 x hardwire 3-wire (HN + G) , 3 x IEC connector

Battery: Lead Acid

Run Time (Up To): 5.3 min at full load

Networking: Ethernet 10/100, USB

Colour: Black

Dimensions (WxDxH): 43.2 cm x 71.5 cm x 26.3 cm

Manufacturer Warranty: 3-year warranty

Designed For: P/N: ACDC2513, AR2401, AR2487G, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A

Detailed Specification

General

Device Type: UPS - rack-mountable

Height (Rack Units): 6U

Colour: Black

Power Device

UPS Technology: On-line

Input Voltage: AC 230 V

Frequency Provided: 50/60 Hz

Frequency Required: 45 - 65 Hz

Input Connectors: Hardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)

Power Output Connectors Details: 6 x power IEC 60320 C13 , 4 x power IEC 60320 C19 , 1 x hardwire 3-wire (HN + G) , 3 x IEC connector

Output Voltage: AC 230 V ± 3% - 50/60 Hz

Power Capacity: 8000 Watt / 8000 VA

Output Waveform: Sinewave

Surge Suppression: Yes

Surge Energy Rating: 480 Joules

Efficiency: 98%

Battery

Technology: Lead Acid

Run Time (Up To): 5.3 min at full load , 14.8 min at half load

Recharge Time: 3 hours

Features: Maintenance free, sealed, leak-proof

Networking

Remote Management Interface: Ethernet 10/100, USB

Expansion / Connectivity

Interfaces: 1 x management (Ethernet) - RJ-45 , 1 x management (USB) - 4 pin USB Type B , 1 x EPO (emergency power off) , 1 x serial - RJ-45

Expansion Slots: 1 (total) / 1 (free) x SmartSlot

Miscellaneous

Features: Audible alarm, LCD display

Compliant Standards: C-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC

Software / System Requirements

Software Included: APC PowerChute Business Edition

Manufacturer Warranty

Service & Support: Limited warranty - 3 years , Limited warranty - batteries - 2 years

Environmental Parameters

Min Operating Temperature: 0 °C

Max Operating Temperature: 40 °C

Humidity Range Operating: 0 - 95% (non-condensing)

Sound Emission: 55 dBA

Dimensions & Weight

Width: 43.2 cm

Depth: 71.5 cm

Height: 26.3 cm

Weight: 111.82 kg

Dimensions & Weight (Shipping)

Shipping Width: 60 cm

Shipping Depth: 1 m

Shipping Height: 46.1 cm

Shipping Weight: 130 kg

Compatibility Information

Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
