Description
It is a fact of the modern world that high technology requires constant refinement and unending improvement - and that is even truer for those who would be leaders. Dark Power Pro power supplies are renowned as quiet and efficient high-performance PSUs. The Dark Power Pro 11 1200W model takes that a step further with a power conversion topology that delivers high performance, add to that an unparalleled array of enhancements that augment this unit's compatibility, convenience of use, reliability, and safety, and the result is a technologically-advanced power supply.
Specifications
Summary
- Product Description

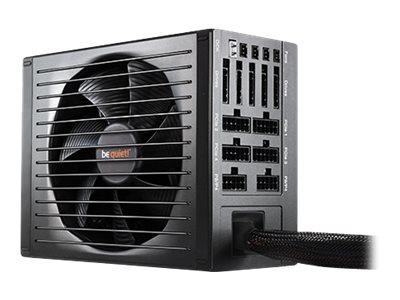

- be quiet! Dark Power PRO 11 1200W - power supply - 1200 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.4/ EPS12V 2.92
- 80 PLUS Certification
- 80 PLUS Platinum
- Weight
- 2.38 kg
- Input Voltage
- AC 100-240 V
- Power Capacity
- 1200 Watt
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 1 x power 8 pin +12V with detachable 4 pin section , 7 x 4 PIN internal power , 10 x 15 pin Serial ATA power , 8 x 8 pin PCI Express power with detachable 2 pin section , 1 x 6 pin PCI Express power , 2 x 4 PIN mini-power connector
- Modular Cable Management
- Yes
- Cooling System
- 135 mm fan
- Included Accessories
- Cable ties, thumbscrews
- Colour
- Black
- Dimensions (WxDxH)
- 15 cm x 19.3 cm x 8.6 cm
- Environmental Standards
- ENERGY STAR
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.4/ EPS12V 2.92
- PSU Form Factor
- ATX
- Colour
- Black
Power Device
- Input Voltage
- AC 100-240 V
- Frequency Required
- 50 - 60 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V , 1 x power 8 pin +12V with detachable 4 pin section , 7 x 4 PIN internal power , 10 x 15 pin Serial ATA power , 8 x 8 pin PCI Express power with detachable 2 pin section , 1 x 6 pin PCI Express power , 2 x 4 PIN mini-power connector
- Power Capacity
- 1200 Watt
- Output Current
- +3.3V - 25 A , +5V - 25 A , +12V1 - 35 A , +12V2 - 35 A , +12V3 - 45 A , +12V4 - 45 A , -12V - 0.5 A , +5VSB - 3 A
- Efficiency
- 94.38% at 50% Load, 92.4% at 100% Load, 92.4% at 20% Load
- Modular Cable Management
- Yes
- 80 PLUS Certification
- 80 PLUS Platinum
Miscellaneous
- Included Accessories
- Cable ties, thumbscrews
- Cables Included
- Power cable - external - 1.5 m
- MTBF
- 100,000 hours
- Cooling System
- 135 mm fan
- Features
- Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, undervoltage protection, short-circuit protection, 4 x 12V rail, temperature controlled fan, CrossFireX ready, Intel 4th-gen CPU (Haswell) compatible, fluid dynamic bearing cooling fan, semi-modular
- Compliant Standards
- TUV, CB, FCC, RoHS, WEEE, cTUVus, ERP, RCM, CU-TR
Environmental Standards
- ENERGY STAR
- Yes
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Max Operating Temperature
- 40 °C
Dimensions & Weight
- Width
- 15 cm
- Depth
- 19.3 cm
- Height
- 8.6 cm
- Weight
- 2.38 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 34.8 cm
- Shipping Depth
- 27.2 cm
- Shipping Height
- 11.8 cm
- Shipping Weight
- 4.59 kg
