Description

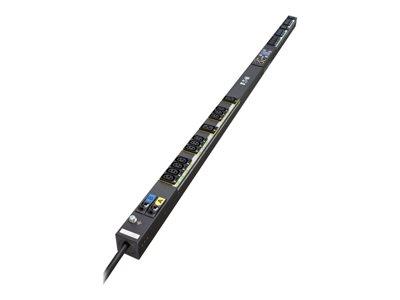

The Eaton ePDU third generation (G3) Managed models build on Eaton’s existing state-of-the-art ePDU G3 technology while offering new capabilities for rack power distribution in data centers and information technology (IT) applications. You now have comprehensive management and monitoring capabilities down to the outlet level. This new level of precision saves time, saves money and avoids risk, making the ePDU G3 Managed the gold standard in power management.
Specifications
Summary
- Product Description
- Eaton ePDU G3 Managed - power distribution unit
- Device Type
- Power distribution unit - rack-mountable
- Rack Size
- 0U
- Input Connectors
- 1 x power IEC 60309 32A
- Output connectors
- 20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
- Networking
- Ethernet 10/100, RS-232
- Dimensions (WxDxH)
- 5.2 cm x 5.3 cm x 160.4 cm
Detailed Specification
General
- Device Type
- Power distribution unit - rack-mountable
- Height (Rack Units)
- 0U
Power Device
- Input Connectors
- 1 x power IEC 60309 32A
- Power Output Connectors Details
- 20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
- Circuit Protection
- Circuit breaker
Networking
- Remote Management Interface
- Ethernet 10/100, RS-232
Expansion / Connectivity
- Interfaces
- 1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- Power cable - integrated
- Features
- LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
Dimensions & Weight
- Width
- 5.2 cm
- Depth
- 5.3 cm
- Height
- 160.4 cm
