Description
Be productive on the go with streamlined, pocket-sized port expansion that's fashionable and functional. The HP USB-C Mini Dock has a modern, textured design and packs pass-through charging and data, video, network, and device connectivity into a compact, portable dock.
-
Charge your device while you work
Deliver pass-through charging to your notebook PC or tablet when you connect its USB-C AC adapter to the dock's USB-C port. -
Enterprise-class network manageability
Support network manageability of your device and the dock with PXE boot support, Wake-on LAN, MAC Address Pass-Through, and LAN/WLAN switching. -
Expand your workspace
Drive an external display with HDMI support up to 4K or VGA support up to 1080p. Connect to your Gigabit Ethernet through the RJ-45 port and your accessories through a USB-C or USB port. -
Ultimate mobility
Carry the dock by hand with the soft-coated USB-C cable that loops and folds neatly into a channel on the bottom of the dock to become a comfortable wrist strap, or pack it to go in your bag alongside your mobile device.
Specifications
Summary
- Product Description

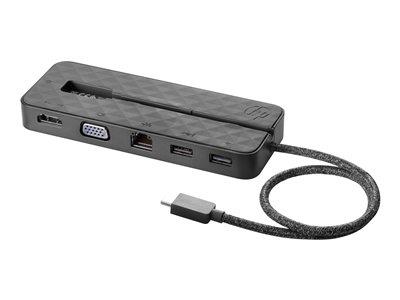

- HP USB-C mini Dock - docking station - USB-C - VGA, HDMI - GigE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- VGA, HDMI
- Dimensions (WxDxH)
- 14.5 cm x 5.5 cm x 1.75 cm
- Weight
- 132 g
- Networking
- Gigabit Ethernet
- Manufacturer Warranty
- 1-year warranty
- Designed For
- Chromebook Enterprise x360; Chromebook x360; Elite x2; EliteBook 1050 G1, 735 G5, 735 G6, 745 G6, 830 G6, 840 G6, 850 G6; EliteBook x360; Mobile Thin Client mt45; ProBook 430 G7, 440 G7, 445r G6, 450 G7, 455r G6, 640 G5, 650 G5; ProBook x360; ZBook 14u G6, 15 G6, 15u G6, 17 G6, Studio x360 G5
Detailed Specification
General
- Product Type
- Docking station
- Width
- 14.5 cm
- Depth
- 5.5 cm
- Height
- 1.75 cm
- Weight
- 132 g
Networking
- Data Link Protocol
- Gigabit Ethernet
Expansion / Connectivity
- Interfaces
- 2 x USB - 4 pin USB Type A , 1 x video - VGA - 15 pin D-Sub (DB-15) , 1 x network - Ethernet - RJ-45 , 1 x audio / video - HDMI - 19 pin HDMI Type A
Miscellaneous
- Cables Included
- 1 x USB-C cable
- Features
- Wake on LAN, Preboot Execution Environment (PXE) support, MAC address pass-through
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Compatibility Information
- Designed For
- HP Chromebook 13 G1 , HP Chromebook Enterprise x360 14E G1 , HP Chromebook x360 11 G1 Education Edition, 11 G3 Education Edition , HP Elite x2 1012 G1, 1012 G2, 1013 G3, G4 , HP EliteBook 1040 G4, 1050 G1, 735 G5, 735 G6, 745 G5, 745 G6, 755 G5, 830 G5, 830 G6, 840 G5, 840 G6, 850 G5, 850 G6 , HP EliteBook Folio G1 , HP EliteBook x360 1020 G2, 1030 G2, 1030 G3, 1040 G5, 1040 G6, 830 G6 , HP Mobile Thin Client mt45 , HP Pro x2 612 G2 , HP ProBook 430 G5, 430 G7, 440 G5, 440 G7, 445r G6, 450 G5, 450 G7, 455 G5, 455r G6, 470 G5, 640 G4, 640 G5, 645 G4, 650 G4, 650 G5 , HP ProBook x360 440 G1 , HP Spectre Pro 13 G1 , HP ZBook 14u G6 Mobile Workstation, 15 G6 Mobile Workstation, 15u G6 Mobile Workstation, 17 G6 Mobile Workstation, Studio x360 G5 Mobile Workstation
